1. Product Introduction
1.1 Package Contents
-
Espresso Impact Tamper *1
-
Dosing Ring *1
-
WDT Tool (0.4mm needles) *1
-
Replacement WDT Needles (0.3mm & 0.4mm)
-
Slotted Screwdriver *1
-
Silicone Mat *1
Specifications
Product Name
|

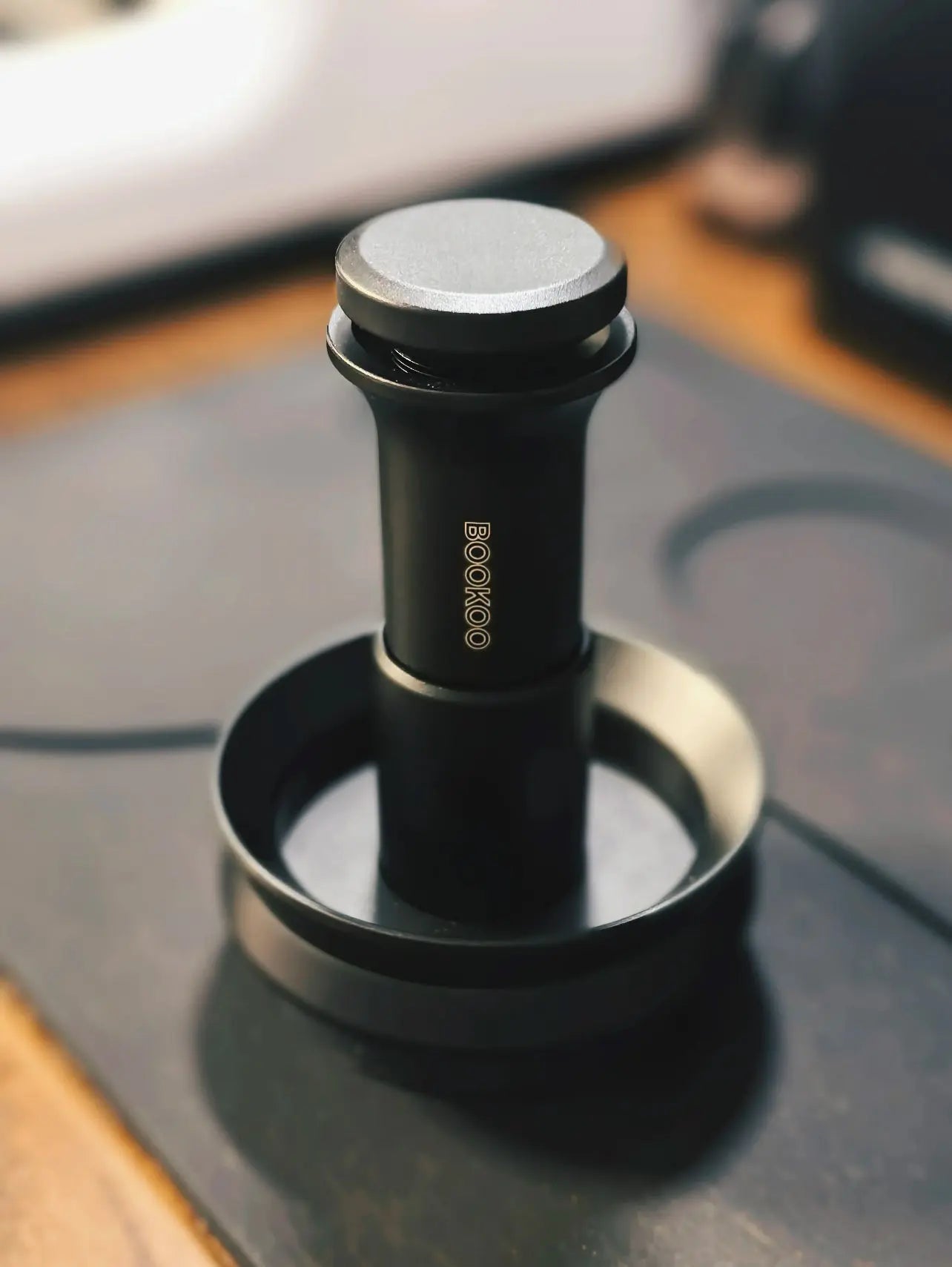

PUCKGO 3-in-1 Impact Tamper (with Ring and WDT)
|
Model
|
TP58
|
Material
|
304 Stainless steel, Aluminum
|
Weight
|
Approximately 446g
|
Product Dimensions
|
Φ77 x H106 mm
|
Portafilters Adaptation
|
58.35mm
|
1.2 Component

2. Product Usage
2.1 Recommended Workflow
① Remove the dosing ring. Magnetically attach to the portafilter. Pour the coffee ground into the basket.
② Use the WDT tool to distribute evenly. Then retract the needles using the collar structure, and place it back to the tamper.
* It is recommended to gently tap vertically before tamping.
③ Tamper vertically within the dosing ring. Press down to achieve compression using impact force. Once done, there will be audible feedback, and the impact tamper will reset automatically.
* It is recommended to tamp twice consecutively.
④ Put aside the tamper and dosing ring, prepare for coffee extraction.

2.2 WDT Tool Needle Replacement Guide
① Unscrew the top cap of the WDT.
② Use the slotted screwdriver to loosen the nut.
③ Remove the old needles and insert the new ones.
④ Tighten the nut with the screwdriver and secure the top cap back in place.
*Safety Tip: When replacing the needles, please handle with care to avoid injury.

2.3 Cautions
-
The impact tamper, dosing ring, and WDT tool in this 3-in-1 product can be used separately but combining them may yield better results and streamline the process.
-
Please store this product properly and keep it away from children to prevent injury.
-
Avoid dropping, applying overload pressure, or disassembling the product.
-
Please use a brush to clean, do not wash with water or disassemble.
-
This product is for coffee preparation only; do not use it for other purposes.
3. Warranty Summary
-
BOOKOO warrants the included manufacturing or material defects for two years from the date of the original retail purchase. BOOKOO does not warrant against normal wear and tear, nor damage caused by accident or abuse. To obtain service, contact customer service with proof of purchase details. Available service options are dependent on the country in which service is requested and may be restricted to the original country of sale. For more information or questions, contact our customer service team at support@bookoocoffee.com.
-
*Disclaimer: Please adhere to the instructions outlined in this manual. This product's warranty does not cover damage caused by improper use.
